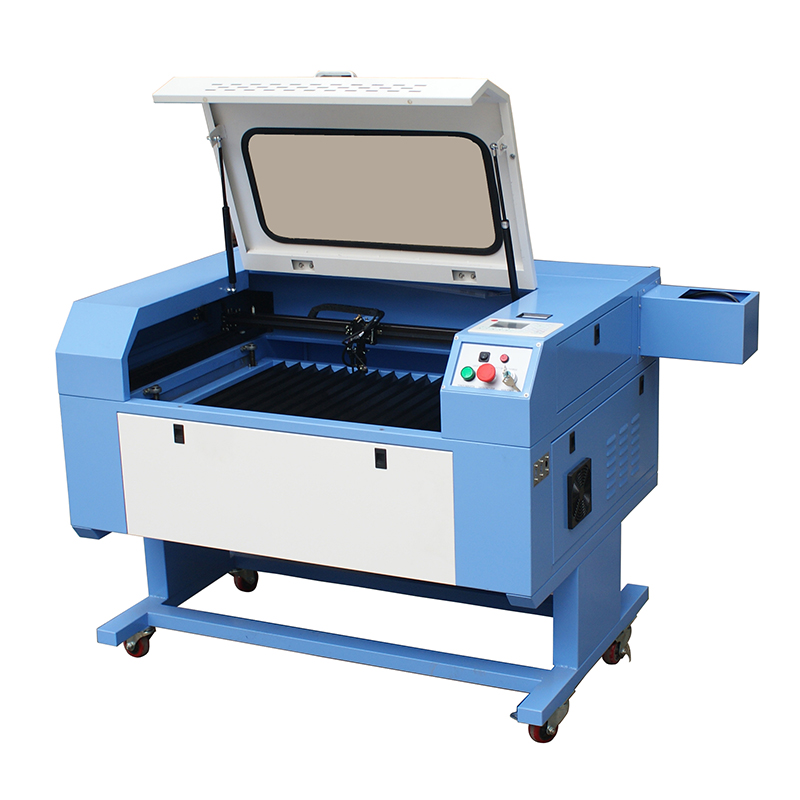

LASER ENGRAVING MACHINE

SONY DSC

Model: X700

Size: 500×700 (mm)

(20 x 28 Inches) Approx

The X series Co2 Laser Engraving Machine is lower cost than M series, it is with Z axis adjustable table which is shorter than M series Laser Engraver, other feature is same.

In order to purchase in large quantities and reduce the cost, Redsail X series Laser Engraving Machines is the best choice; by the way, Redsail Laser Engraving Machine use the smart design, the frame of the machine can be split into 2 parts, so it is easy to be moved through the narrow door. The laser power of Redsail X series laser engraving machines from 50W to 130W.

Redsail Laser Engraving Machine Specifications

ModelX700
Laser tubeWater cooling Co2 sealed glass
Control system32 Bit DSP
Drive typeStepper motor
Laser Power50W
Working Size (mm)500 x 700
Adjust Table (mm)200
Max speed1000 mm/s
Image formPlt, Dxf, Bmp, Ai, Dst
Resolution1000 DPI
Repeatability0.01
InterfaceUSB3.0 / USB Disk
Power110~240V 50~60Hz
Warranty12 Months
Machine dimensions (mm)1160*890*1030
Package dimensions (mm)1640*990*1170
G. W. (Kg)185
